6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light

Place of Origin : Guangdong, China

Brand Name : Joyful Partner

Model Number : C825068

Packaging Details : Shockproof Carton Box

Supply Ability : 500000 Carton/Cartons per Month

MOQ : 2 pieces

Price : Negotiable

Color Temperature(CCT) : 2700k-6500k

Lamp Luminous Efficiency(lm/w) : 100

Color Rendering Index(Ra) : 80

Support Dimmer : Yes

Lighting solutions service : Project Installation

Lifespan (hours) : 50000

Working Time (hours) : 50000

Product Weight（kg） : 1.13

Warranty(Year) : 2-Year

Input Voltage(V) : DC 24v,12v

Working Temperature(℃) : -20 - 40

Working Lifetime(Hour) : 50000

Lamp Body Material : Stainless steel

IP Rating : IP67, IP67 Waterproof

Application : Step,stair,Deck,Boat,Humid environment

Light Source : LED

Item Type : LED Underground Light

Shape : Round

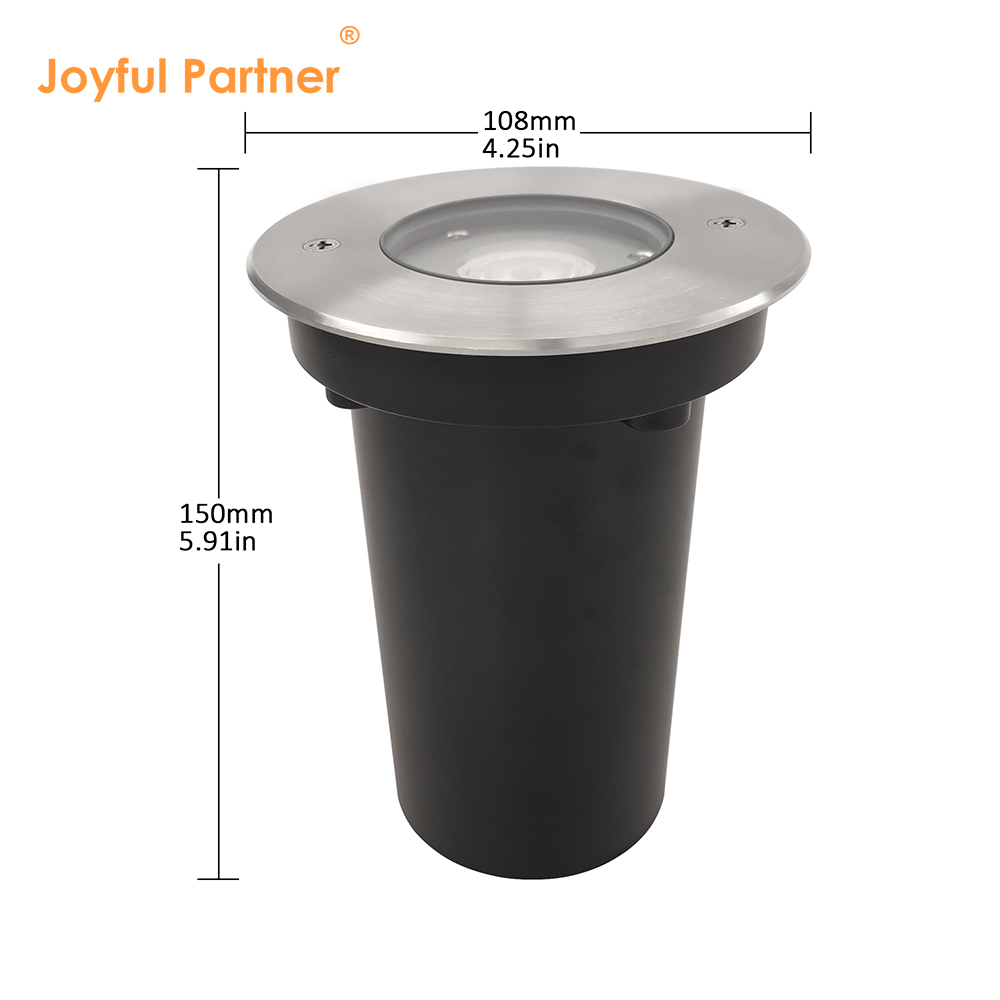

Lamp size : Dia.108mm*H.90mm

Glass : 8mm Tempered step glass

OEM&ODM : Available

Power : 6 Wattage

Certificate : CE,RoHS,EMC

Lens effciency : ≥85%

Transport Package : Shockproof Carton Box

Port : Guangzhou/Shenzhen

Contact Now

6W Outdoor Underground Light LED Deck Lighting IP67 Low Voltage 12V DC Die Cast Aluminum Housing Inground Light For Land
Products Description
6W Outdoor LED Underground Light IP67 12V DC Low Voltage Inground Light
COB 6W Outdoor Underground Light LED Deck Lighting IP67 Low Voltage 12v DC Die Cast Aluminum Housing Inground Light
Item No.
Light source
Lens beam angle(°)
Consumption(watt)
Input Voltage(V)
Ik rate
C825068
1*6W COB LED
15°/25°/38°/60°
6.2W
DC12V/DC24V/AC100V-240V
8
C825069(AS)
1*6W RGBW4 in1
25°/25°/40°/10*65°/20*65°
8.1W
DC12V/DC24V
8
C825109(AS)
1*6W RGBW 4in1
25°/25°/40°/10*65°/20*65°
10.2W
DC12/24V
8
Material specifications
Housing
12#Die-casting outdoor powder painting aluminum.T=60-80μm
Adhesion of ISO Glass 1/ASTM Glass 4B
Front cover
304# or 316#Stainless Steel
Lens
Optical lens,effciency≥85%
Glass
Tempered glass.T=8mm
Gasket
Molding shaped silicone double seal
Operating temperature
(-20℃~40℃)
Power cable
H05RN-F2*0.75mm²L=0.5m(low voltage)
H05RN-F3*0.75mm²L=0.5m(for single color/high voltage)
H05RN-F5*0.5mm²L=0.5m(for RGBW)
Mounting sleeve
ABS
Optional accessory
Honeycomb
(1)12#Die-casting outdoor powder painting aluminum
(2)Stainless steel front cover,T=3mm.
(3)Tempered step glass,super pressure capacity.
(4)High lumen brand LED, long life span ,Ra>80
(5)SUS 304# screws
(6)Anti-corrosion rubber cable,H05RN-F
